Proper hydraulic hose installation and routing are essential for ensuring the efficiency, safety, and longevity of hydraulic systems. This guide covers everything from selecting the right hose and fittings to performing a precise and secure installation, equipping you with the knowledge needed to maintain optimal hydraulic system performance and prevent costly failures.
Key Takeaways
- Proper hydraulic hose installation is key for system efficiency and longevity.
- Always prioritise safety by relieving system pressure and wearing protective gear.
- Select compatible hoses and fittings to prevent leaks and optimise hydraulic pump performance.
- Regular inspections and following maintenance guidelines are essential to avoid failures.
- Understanding fitting types and their applications helps achieve efficient, leak-free connections.
Preparing for Installation
When preparing how to install hydraulic hose fittings yourself, a thorough and methodical approach is crucial. Follow these steps to ensure safety and effectiveness:
Prioritise Safety
- Always wear protective gear, including gloves and safety glasses, to prevent injuries.
- Ensure the workspace is well-lit and free from obstructions to reduce the risk of accidents.
Relieve Hydraulic Pressure
- Before starting, ensure all built-up pressure in the hydraulic system is safely relieved. Failure to do so can result in hazardous fluid discharge or system damage.
Gather Necessary Tools
- Have essential tools ready, such as a hydraulic hose cutter, torque wrench, pliers, and thread sealant or tape.

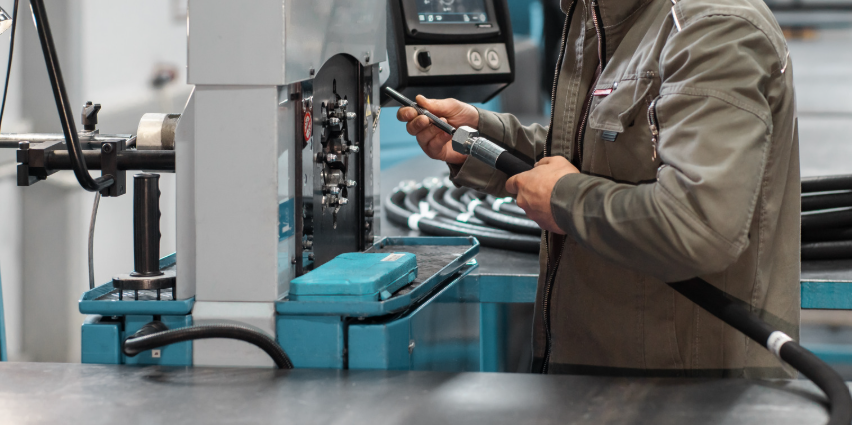

- Specialised equipment like a crimping machine may also be required for crimped fittings.
Clean the Workspace:
- Prevent contamination by ensuring the workspace is clean and free from debris.
- Contaminants in hydraulic fluid are a common cause wear or failure in hydraulic components.
Installing Hydraulic Hose Fittings
Correctly installing hydraulic hose fittings is vital to achieving a secure, leak-free connection. Adhere to the following steps for hydraulic hose fitting installation for optimal results:
- Ensure Proper Alignment: Align the fitting with the hose correctly. Properly aligned fittings prevent unnecessary strain on the entire hose assembly.
- Insert and Secure the Fitting: Fully seat the fitting into the hydraulic hose, ensuring it’s snug and secure. For crimped fittings, use a crimping machine to create a resilient connection.
- Apply Sealant: Apply thread sealant or tape to tapered threads to prevent leaks. Be cautious not to use excess sealant that could contaminate the system.
- Tighten Securely: Use a torque wrench to tighten the fitting. Avoid over-tightening, which can damage threads or compromise the seal.
- Verify Compatibility: Ensure that the hydraulic hose, fittings, and fluid are compatible with the system’s operating pressure and temperature tolerance.
Installing Hydraulic Hose Fittings
Proper installation of hydraulic hose fittings is vital to achieving a secure, leak-free connection. Follow these steps explaining how to install hydraulic hose fittings properly:
- Ensure Proper Alignment:
Align the fitting with the hose correctly. Properly aligned fittings prevent unnecessary strain on the entire hose assembly.
- Insert and Secure the Fitting:
Fully seat the fitting into the hydraulic hose, ensuring it’s snug and secure. For crimped fittings, use a crimping machine to create a resilient connection.
- Apply Sealant:
Apply thread sealant or tape to tapered threads to prevent leaks. Be cautious not to use excess sealant that could contaminate the system.
- Tighten Securely:
Use a torque wrench to tighten the fitting. Avoid over-tightening, which can damage threads or compromise the seal.
- Verify Compatibility:
Ensure that the hydraulic hose, fittings, and fluid are compatible with the system’s operating pressure and temperature tolerance.
Hydraulic Hose Fitting Connection Types
Understanding the different types of hydraulic hose fittings helps in selecting the appropriate fitting for specific applications:
- Crimped Fittings:
A type of permanent fitting, crimped fittings provide a durable and leak-proof connection. These are ideal for high-pressure applications.
- Field-Attachable Fittings:
Also known as reusable fittings, these can be installed without specialised equipment, making them convenient for emergency adjustments or hose replacement.
- Mated Angle Fittings:
Designed for high-pressure environments, these fittings ensure a tight seal and secure connection in hydraulic systems operating under extreme conditions.
- Tapered Thread Fittings:
These fittings form a seal through torque, but over-tightening can damage the threads or compromise the connection.
Conclusion
Proper hydraulic hose installation and routing are integral to maintaining system performance and safety. By selecting the appropriate fitting type and ensuring a secure, leak-free connection, you can optimise the efficiency of hydraulic systems. Regular maintenance, including visual inspections and pressure testing, helps prevent hose failure and extends the life of the entire hose assembly. Adhering manufacturer recommendations, safety protocols and using compatible components, such as stainless steel fittings and carbon steel or brass fittings, ensures reliable operation in various hydraulic applications.
Whether you’re working with high-pressure systems, complex or bespoke systems, or high-vibration environments, taking the time to install hydraulic hose fittings and other components correctly is essential. Following these best practices will minimise the risk of catastrophic failure, maintain optimal performance, and safeguard both equipment and personnel.
Frequently Asked Questions
What are the three types of hydraulic fittings?
The three main types of hydraulic fittings are O ring face seal fittings, and mated angle fittings. Each type serves specific hydraulic applications, offering varying levels of permanence and pressure tolerance.
What type of fittings are used on hydraulic hoses?
Common fittings used on hydraulic hoses include crimped metal fittings, reusable fittings, and tapered thread fittings. The choice depends on the system’s pressure rating, fitting material, and application requirements.
How do you size hydraulic hose and fittings?
To size hydraulic hose and fittings, measure the inner diameter of the hose for the hose size, determine the maximum operating pressure, temperature and select compatible fittings. In the UK we use a British Standard pipe so the country of origin of your system and components will affect the s
